Algorithms and Data Structures Narrative

Artifact description

The ABCU data structures artifact is a C++ application for ABCU University to store and manage its computer science courses. It implements the backend or algorithmic part of the application, as it does not have a front-facing GUI and is used via the terminal. The underlying logic of the application could easily be put into a larger application. The artifact was created for CS-300 Data Structures and Algorithms on 4/12/25.

Artifact in ePortfolio & outcomes

I chose this artifact in my ePortfolio for a handful of reasons. First, it directly highlights my ability to solve a problem with algorithmic principles. Second, it allows me to make updates to code I made over a year ago. In that year, I have improved significantly as a developer and wanted to make this application better. Originally, the application used a vector to store the courses. I defended this choice based on the given parameters for the project. The number of courses was very small, and a vector could store, sort, and look up just as fast as a binary search tree and a HashMap at that size.

However, let us say that ABCU wants to use the program for the entire university, or there are other universities that want to use it. They want the application to be able to find the information on a course very quickly (lookup), and sorting the courses is not a priority or a feature they care about. They also have extra computing power, so space complexity is not an issue. The vector version uses O(n) space, storing one course per element. The hash table will use O(m + n), where m is the number of buckets even if empty and n is the number of courses. If I were given these new parameters, the main reasons for me choosing a vector would no longer be valid. A hash table's main strength is lookup speed, and its main drawbacks are sorting and overhead. If the application was to be used for looking up course information and not displaying all courses or sorting them, a hash table is a natural choice. Not only will this enhancement show my ability to solve a problem using algorithms, but it shows my ability to determine which is best given the problem at hand.

This artifact was improved by swapping the vector for a hash table. Throughout this narrative, I support why a hash table is better for ABCU's needs. I have also included the manual testing I did in the table below and the runtime/space complexity comparison inside this narrative. Instead of using the prebuilt std::unordered_map class, I created my own hash table, sorting algorithm, and way to handle collisions. Then, I incorporated that into the existing program. This enhancement shows that I can solve problems using algorithmic principles by creating my own hash table and sorting algorithm. By accepting a hash table with O(n^2) or O(n log n) sorting in exchange for O(1) lookup time, I highlight my ability to manage the trade-offs in my solutions.

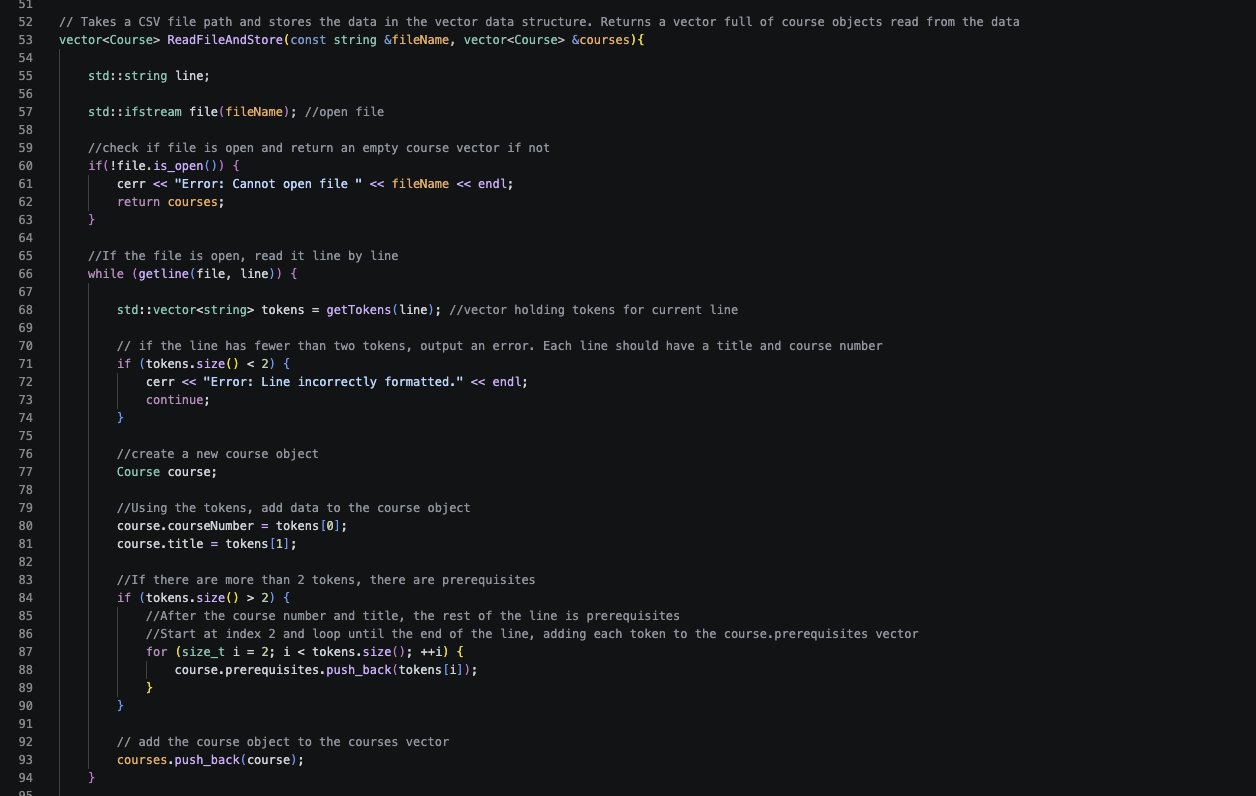

readFileAndStore Vector Method(original)

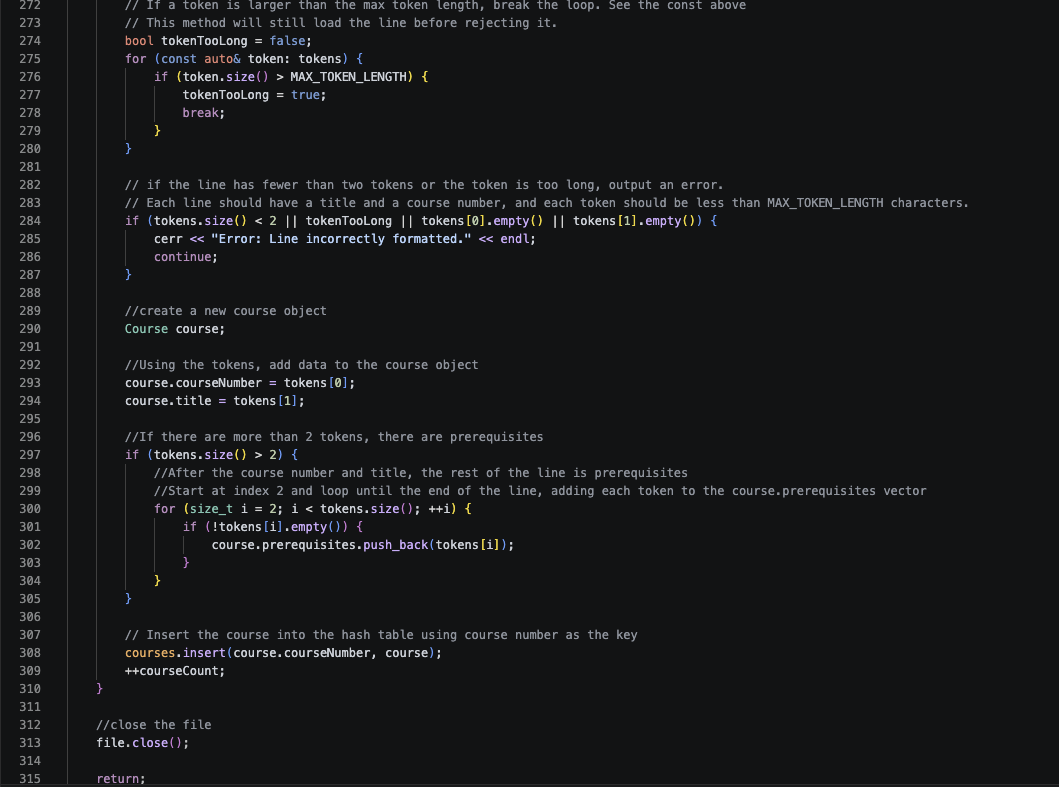

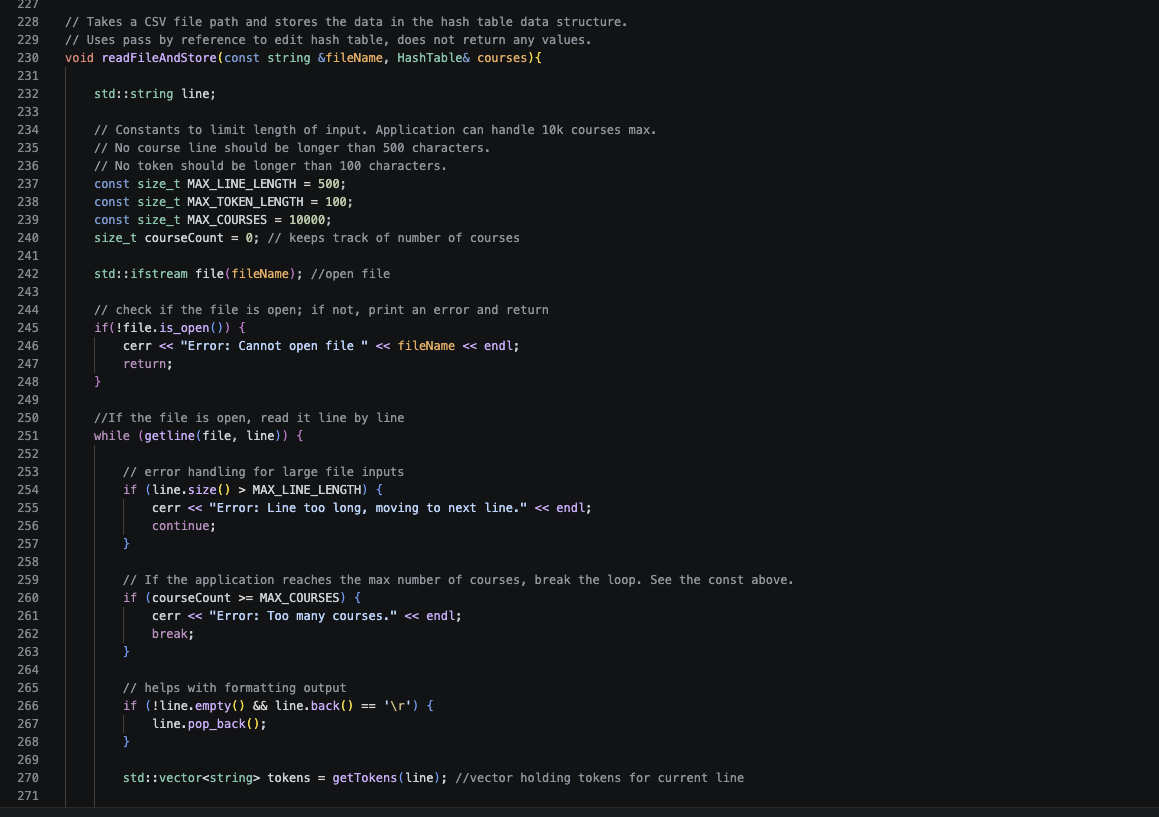

readFileAndStore HashTable Method(Enhanced)

Reflection of enhancements

The process of modifying this artifact was not only a lot of fun but also a great learning experience. Even though C++ is not one of my main languages, I greatly admire and enjoy writing in it. Enhancing this artifact, I had to learn how to build a hash table without using the C++ map library. I decided that creating it as a class would fit well into this program. It allowed me to make member functions I can use to manipulate the hash table as well as abstract the logic. My original plan was to use pointers with a linked list to traverse the hash table. I learned after creating the hash table that I needed a way to store the key and the course object, not just one data type. I did some research and found that C++ has something called pairs. These allow you to hold two different data types in a single unit. This was perfect for my needs; I made the key the first element of the pair and the course object the second.

The most challenging part of the enhancement was sorting the hash table. Compared to my original implementation using a vector, the hash table has much worse sorting time. I realized that the hash table is inherently unsorted and that sorting the underlying vector used on the hash table would break the hash function. This is an acceptable trade-off, as the whole point of the enhancement was to improve lookup speed, which is O(1 + k) compared to the vector's O(n) or O(log n) if we use binary search. Another added benefit of using a hash table is that if deletion ever needs to be added, it can be done with O(1) compared to O(n) on a sorted vector. I first started by creating a member method that will loop over all the buckets and chains in the hash table and add them to a vector. This method's runtime is O(m + n), where n is the total number of courses and m is the number of buckets. The current application still uses sorting, and each time the data is loaded, it will be stored twice: once in the hash table and once in a vector used for sorting. This could be removed as sorting is not an important feature, but it is kept given the scope of changes.

Next, as part of my plan, I needed to create my own sorting algorithm. Because sorting is not a priority and our data is still very small, I opted for insertion sort, which has a time complexity of O(n^2) on unsorted vectors. This application will load the courses into a normal vector at the initial load so that if the user wants to display the full sorted list, it will be O(n), not O(n^2). I could have sorted the vector using std::sort to improve sort time to O(n log n), but it was not a part of my plan nor is it a feature that was requested. At smaller course amounts, insertion sort is actually faster than merge sort or similar algorithms. Not only that, but it also adds nearly zero additional overhead to the application when sorting is not important (GeeksforGeeks, 2025). When the number of courses starts to reach tens or hundreds of thousands, insertion sort will become unusable. However, many universities do not have that many courses. The University of California, Los Angeles (UCLA) has 5,000 total courses and is one of the largest universities in the United States (U.S. News & World Report, 2023).

Regardless, using std::sort or removing sorting entirely in production is needed. O(n^2) is an unacceptable time complexity if any sorting is done, and especially when the number of courses starts to scale. However, at only 8 courses, the difference between O(n^2) or O(n) and O(n log n) is unnoticeable. The hash table has only 10 buckets by default for ABCU, but if it is used in a larger university, the size should be increased either manually, or the application will do it automatically (see next section). Finally, with the insertion sort method, I could reuse the same printCoursesAlphanumeric method in my application that I used in the vector version.

For security, I made a few important additions. To prevent an attacker or a stakeholder from accidentally reducing the lookup time to O(n), I set a hard limit to the length of chains to 5. If there is a collision, the hash table will start using the chains. If all or most of the courses fall into one chain, then lookup may become O(n) rather than O(1). If the length is more than 5, the hash table will rehash itself and increase its size. This will prevent all of the courses being put into one linked list and dynamically increase the size. Rehashing the table will be O(n) even with O(1) insertions because every course is rehashed into the table. I also added various checks to prevent overly large inputs when loading the data. The application can handle up to 10,000 courses, which, if deployed for each university, is more than enough. Each line and token in the line has a hard limit much higher than needed to prevent obviously incorrect data from being added to the hash table. These security additions do not make the application unbreakable but help with validating the input and preventing large inputs from being taken. This application assumes the CSV file is coming from a trusted source and contains mostly valid data.

I made a few smaller improvements to the application. I improved the output formatting and added \r \n stripping to the CSV file, which makes the application more robust. In the vector implementation of the application, if the user clicked on loading the data, it would continue to add it, introducing duplicate data. However, with the hash table, it will only update if there is already an existing key. I created a trim method to remove whitespace from the input. I also created a method to verify the prerequisites, so students do not take courses that do not exist. Using a hash table increases the speed at which prerequisites can be verified. With a vector, n courses will be O(P*n), where P is the prerequisite, and a hash table is O(P). Similar to the software design and engineering category. I incorporated feedback by combining both implementations; the vector and hash table in the same GitHub repo. This makes the changes made much easier to see.

Runtime and space complexity comparison

Manual testing

References

• GeeksforGeeks. (2025, July 23). Time and space complexity of insertion sort. https://www.geeksforgeeks.org/dsa/time-and-space-complexity-of-insertion-sort-algorithm/
• U.S. News & World Report. (2023). How does University of California--Los Angeles rank among America's best colleges? University of California--Los Angeles. https://www.usnews.com/best-colleges/ucla-1315
